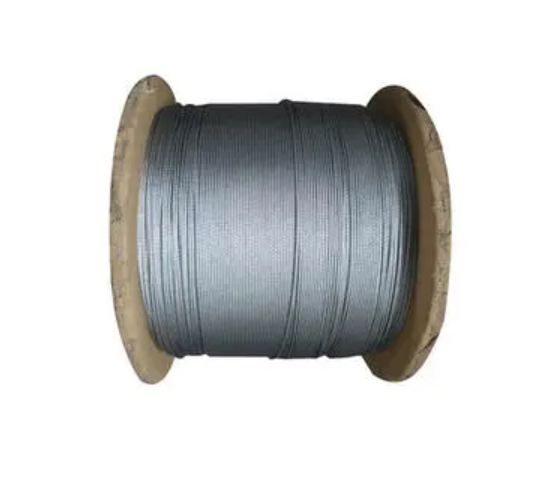

ACSR Cuckoo 795 MCM Conductor for Overhead Transmission

    ACSR Cuckoo 795 MCM Conductor for Overhead Transmission

    The bare aluminum and ACSR conductors described here are suitable for installation in all practical spans on transmission towers, wood poles and other structures. Installations range from long distance EHV transmission lines to sub-service spans at distribution or utilization voltages on private premises.
    • ACSR


  • Product Details

Description

The use of Aluminium as a material for electrical conductors has greatly developed mainly due to its electrical properties. However, Aluminium conductors for most of transmission lines which spans are quite long, it is necessary an additional mechanical support. Commonly it is used galvanized steel wires for cores of ACSR.

Application
Widely used as bare cable for overhead transmission lines and also as primary and secondary bare cable for distribution lines.

Construction

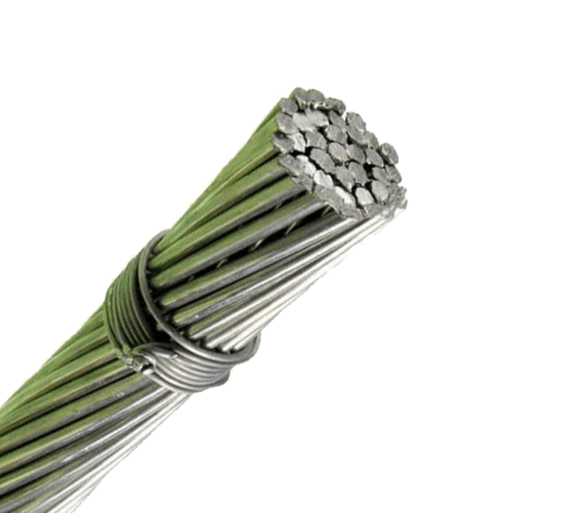

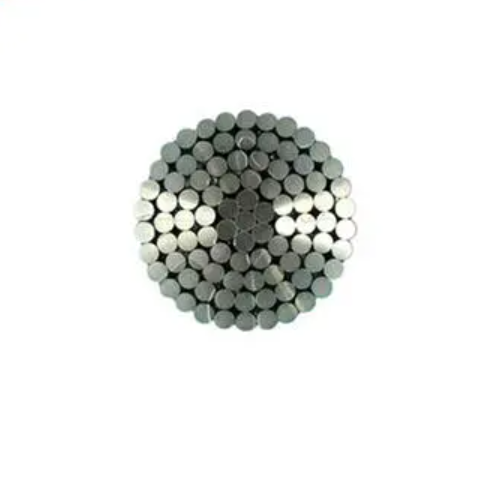

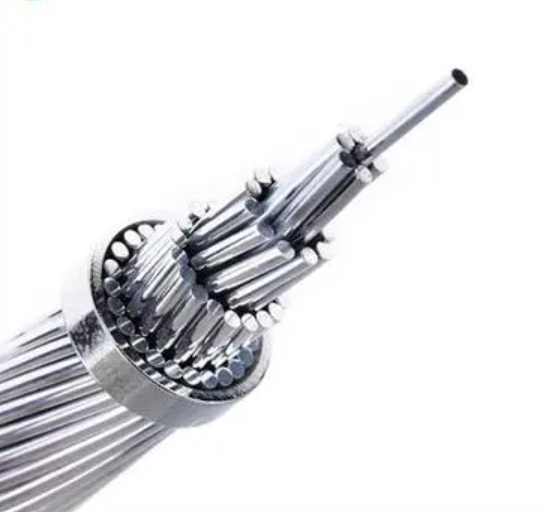

ACSR is concentrically stranded conductor with one or more layers of Aluminium wire hard-drawn 1350-H19 on the galvanized steel wire core. The core may be single wire or stranded depending on the size. Steel wire is available in Class A or B galvanization as corrosion protection.

ACSR is according to electrical and mechanical strength requirements of transmission or distribution lines, can provides an appropriate design combining the quantity of Aluminium and galvanized steel wires.

Characteristics

Code   NameSizeStrandingSectionOverall DiameterConductor WeightRated Strength
cmils/AWGAluminumSteelmm2mmkg/kmACSR/GA2
No. x ΦmmkN
PEACOCK605,00024/4.037/2.69345.9124.211158.9896.08
EAGLE556,50030/3.467/3.46347.8924.211295.74123.65
DOVE556,50026/3.727/2.89328.5123.551138.74100.52
PARAKEET556,50024/3.877/2.58318.9123.221065.6788.07
OSPREY556,50018/4.471/4.47298.1622.33897.8160.94
HEN477,00030/3.207/3.20297.5722.431110.77105.86
HAWK477,00026/3.447/2.67280.8421.79975.1986.74
FLICKER477,00024/3.587/2.39272.9821.49913.5876.51
PELICAN477,00018/4.141/4.14255.7720.68769.8352.49
LARK397,50030/2.927/2.92247.7820.47925.3490.29
IBIS397,50026/3.147/2.44234.0719.89812.5472.50
BRANT397,50024/3.277/2.18227.6919.61761.0564.94
CHICKADEE397,50018/3.771/3.77212.0918.87641.4044.21
ORIOLE336,40030/2.697/2.69210.2818.82783.3776.95
LINNET336,40026/2.897/2.25198.3818.29687.5362.72
MERLIN336,40018/3.471/3.47179.6817.37542.8838.61
OSTRICH300,00026/2.737/2.12176.9017.27613.4256.49
PARTRIDGE266,80026/2.577/2.00156.8616.31546.0150.26
WAXWING266,80018/3.091/3.09142.4815.47430.2330.60
PENGUIN00006/4.771/4.77125.0914.30432.7637.14
COCHIN211,30012/3.377/3.37169.4816.87783.9692.07
