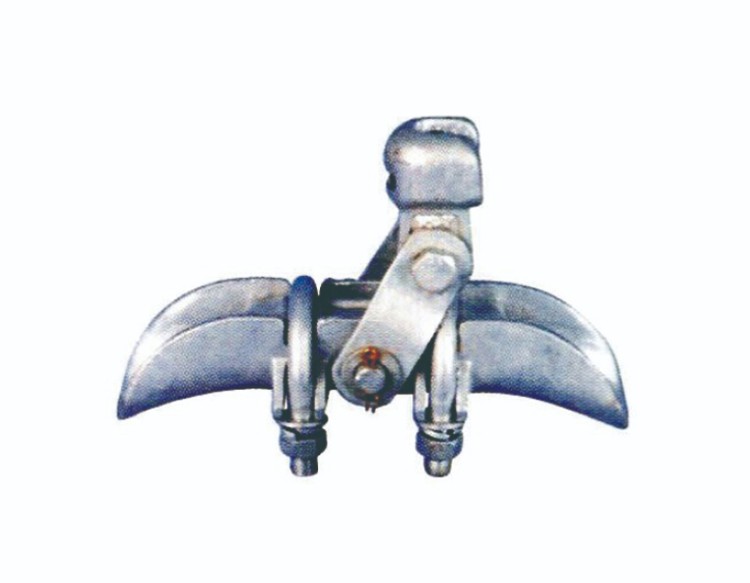

Suspension Clamp-XGU-F/AF/BF

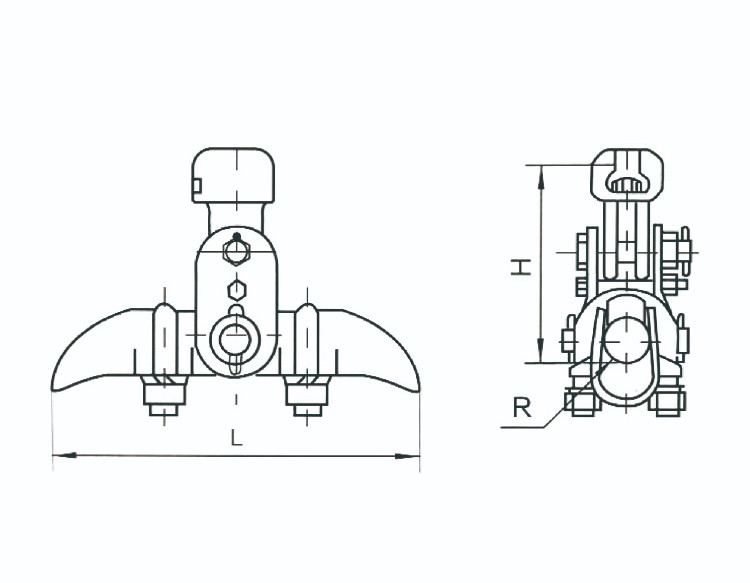

Catalog No. | Diameter | Dimensions (mm) | Failure Load (kN) | Weight (kg) | ||
L | R | H | ||||
XGU-5AF | 23~33 | 300 | 17 | 210 | 60 | 5.7 |
XGU-6AF | 34~45 | 300 | 23 | 220 | 60 | 6.1 |
The body and keeper are made of cast iron. The pins are made of stainless steel
Other parts are steel material. All parts are treated by hot-dip galvanized processes.
