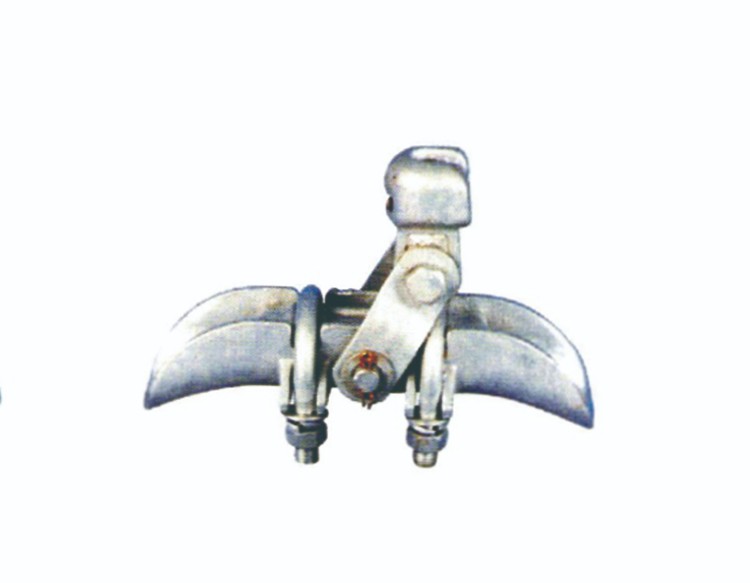

Suspension Clamp-XGU(With Socket-clevis)

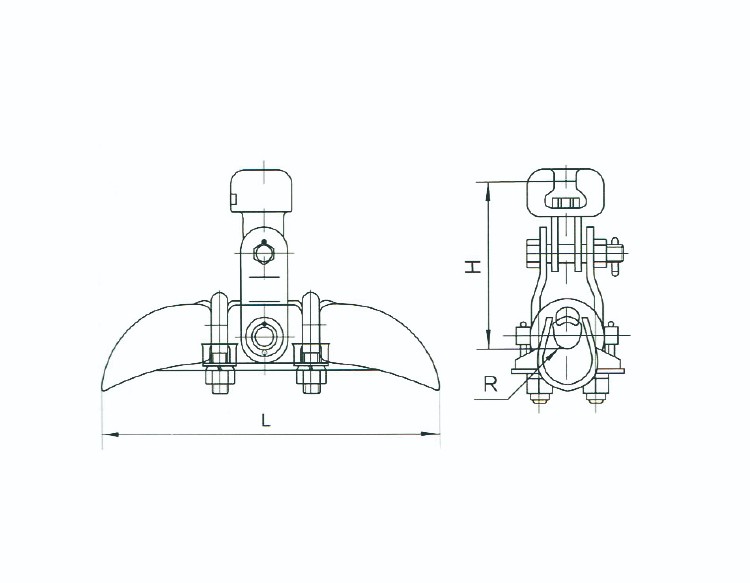

Catalog No. | Diameter | Dimensions (mm) | Failure Load (kN) | Weight (kg) | ||
L | R | H | ||||
XGU-5A | 23~33 | 300 | 17 | 157 | 70 | 5.7 |
XGU-6A | 34~45 | 300 | 23 | 163 | 70 | 6.1 |
The body and keeper are made of cast iron. The pins are made of stainless steel
Other parts are steel material. All parts are treated by hot-dip galvanized processes.
