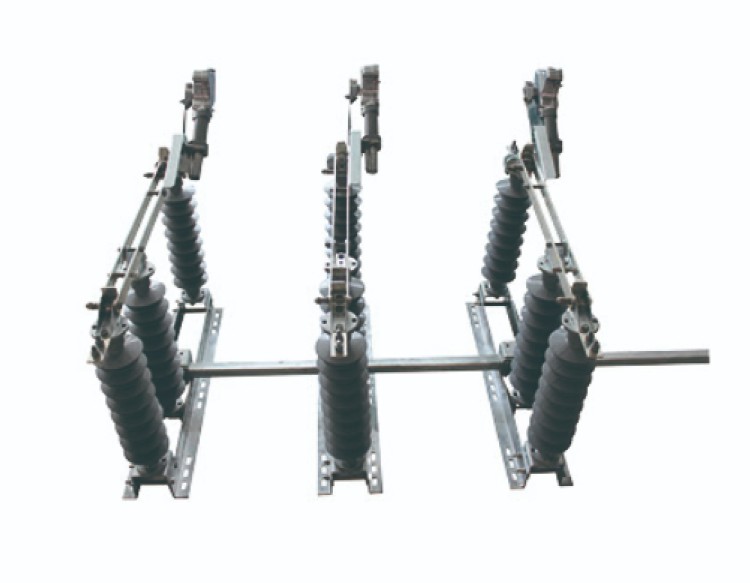

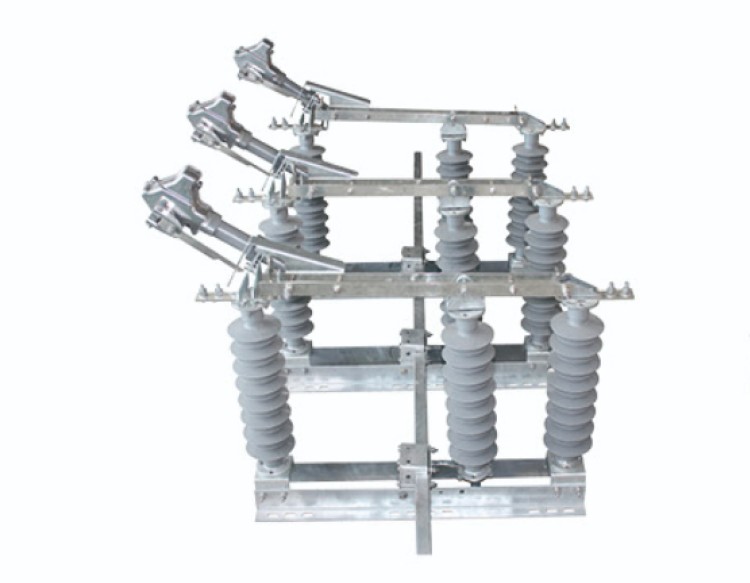

On Load Break Switch(Disconnector) Supplier

Main technical specifications
No.	Item		Unit	Data
1	Rated voltage		Kv	12	24	36
2	Rated frequency		Hz	50/60
3	Rated current		A	200/400/630
4	Rated short circuit withstand current ( 1S )		kA	20
5	Rated peak withstand current ( 1S )		kA	50
6	Rated making current		kA	31.5-50
7	Rated insulation level ( H )	Lightning impulse	Kv	75/85	125/145	170/195
7		Power frequency withstand	Kv	45	55/75	75/100
8	Rated short circuit breaking capacity cos . Φ( 0.7 ) Without maintenance of contacts
	for active circuits	20 breakings	A	630	630	400
		30 breakings		400	400	300
		40 breakings		300	300	250
		50 breakings		250	250	170
		75 breakings		1170	170	160
		120 breakings		110	110	110
		200 breakings		65	65	65
		280 breakings		50	50	50
9	For ring circuits breaking capacity			630	400	250
10	Rated breaking capacity of transformer			50
11	Rated breaking capacity of cable charging			11
12	Rated breaking capacity of earthing fault			56

1.Function: The LBS is designed to make, break, and carry currents. It is an essential part of the circuit that allows for safe switching during normal operation.

2.Use Case: LBS is commonly employed for on-load switching. It enables the opening and closing of circuits while current is flowing.

3.Safety Considerations: LBS does not provide isolation. Therefore, it is not suitable for tasks that require complete disconnection from the power source.

4.Applications: LBS finds applications in various scenarios, such as load shedding, sectionalizing, and maintenance operations.

5.Isolation Function: LBS does not fulfill the isolation function; it is not intended for safety isolation.
