Ansi Lin Post Insulators For High Voltage China

Ansi Lin Post Insulators For High Voltage

ANSI Line Post Insulators for High Voltage are a type of electrical insulator that is widely used in power plants, transmission substations, distribution substations, and high voltage power equipment up to 1100kV. These insulators are used in applications for both insulating and structural support of live components.

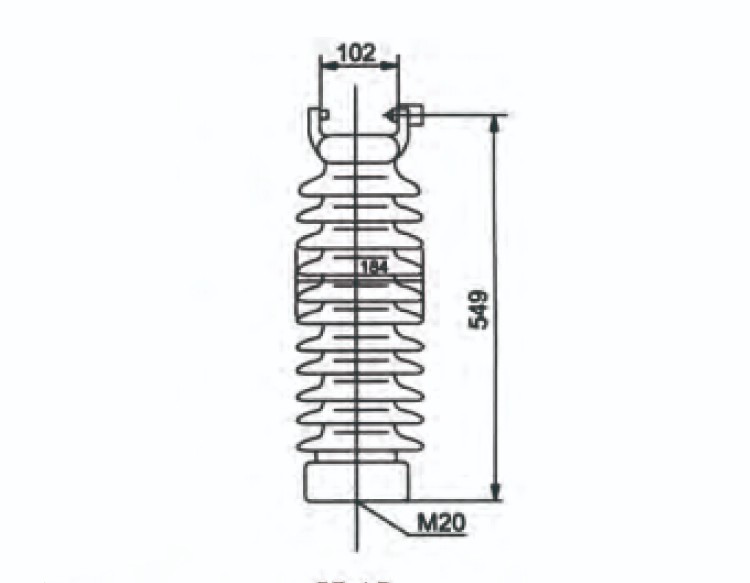

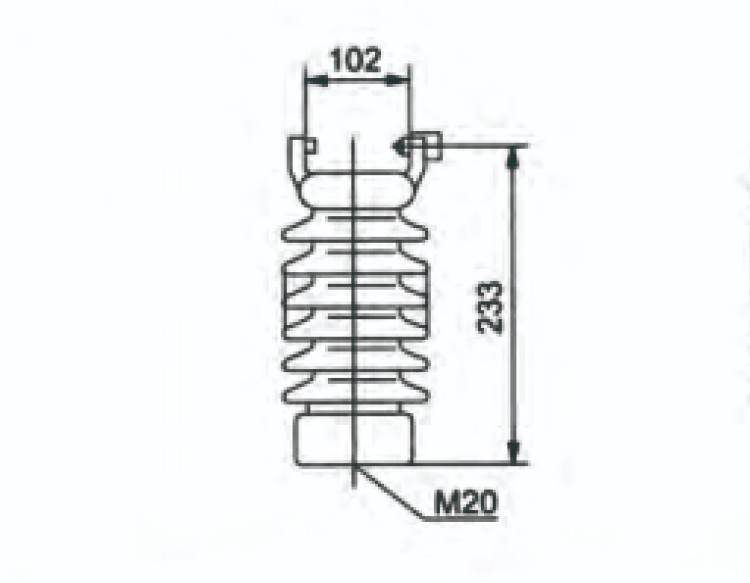

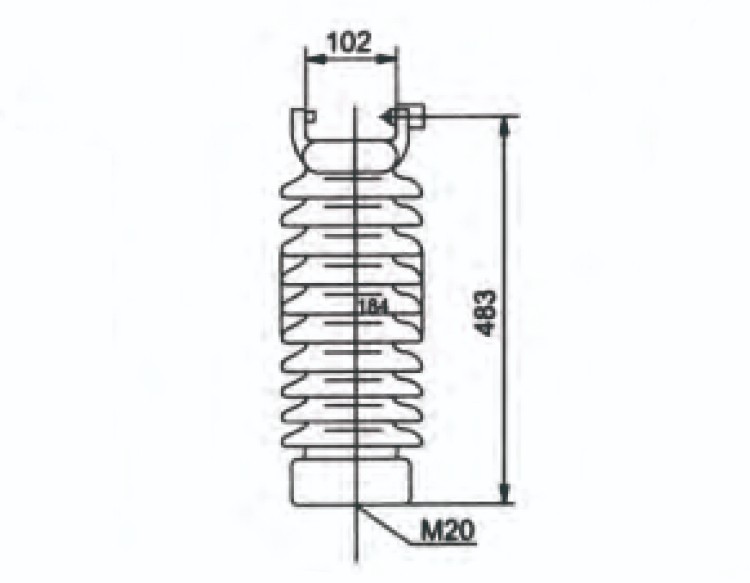

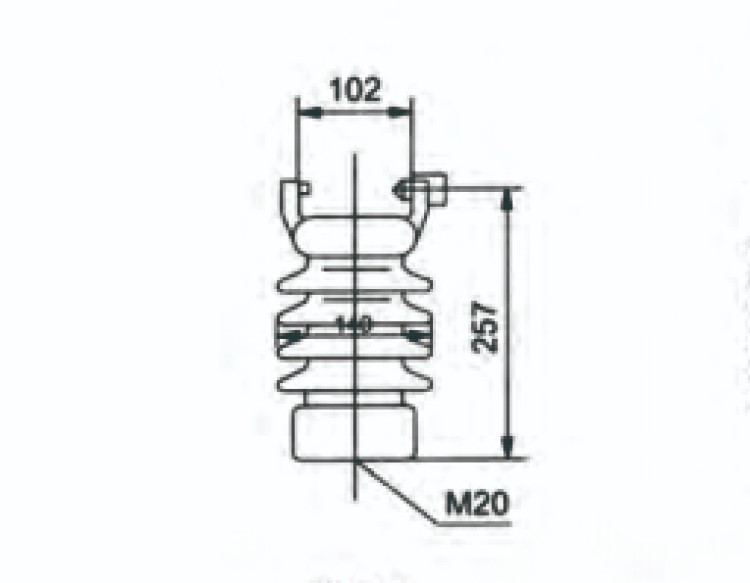

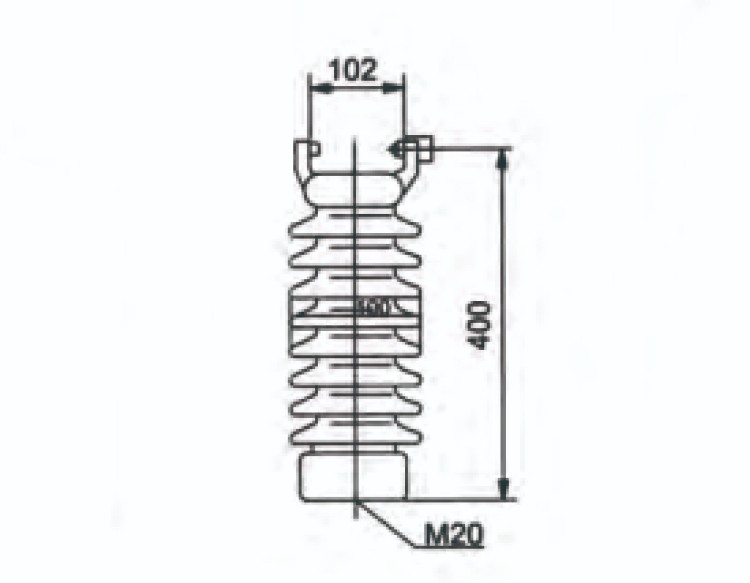

ANSI CLASS		57-11	57-12	57-13	57-14	57-15
Creepage distance mm		356	559	737	1015	1145
Dry arcing distance mm		165	241	311	368	438
Cantilever strength kN		12.5	23.5	12.5	12.5	12.5
Low frequency flashover voltage	Dry flashover kV	80	110	125	150	175
Low frequency flashover voltage	Wet flashover kV	60	85	100	125	150
Critical impulse flashover voltage	Positive kV	130	180	210	255	290
Critical impulse flashover voltage	Negative kV	155	205	260	340	380
Radio influence voltage data	Test voltage to ground kV	15	22	30	44	44
Radio influence voltage data	At 1000kHz Max.RIV μ V	100	100	200	200	200
Net Weight, Each, Approx, Kg		6.8	10	11.8	15.9	18.6

Here are some key features of these insulators:

1.They have a high mechanical strength design, including cantilever, torsion, compression, and expansion strength.

2.They are designed to be anti-ageing, anti-UV, and anti-sandstorm.

3.They have a smooth surface with high hardness and exceptional anti-pollution performance.

4.They exhibit minimal displacement under load.
