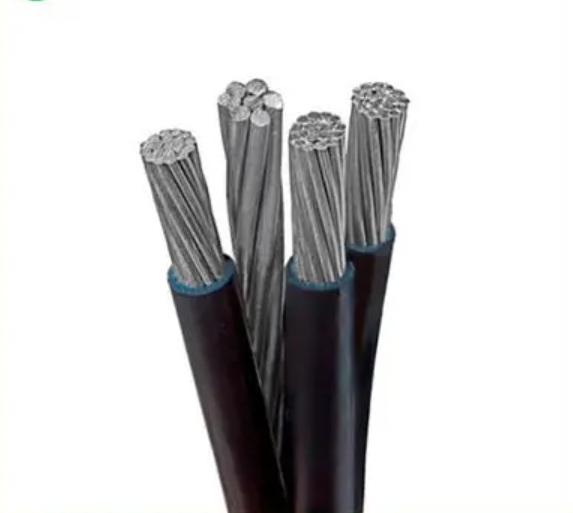

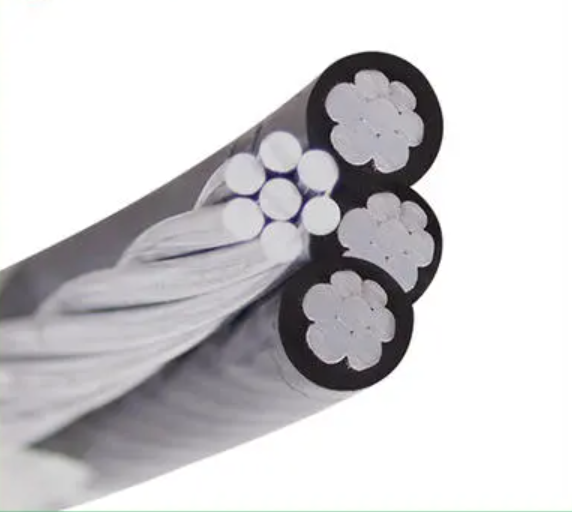

#3AWG Quadruplex Aluminum XLPE Covered Conductor Service Drop Cable ICEA S-66-524

    #3AWG Quadruplex Aluminum XLPE Covered Conductor Service Drop Cable ICEA S-66-524

    Concentric strand or compressed 1350-H19 conductor, polyethylene or cross-linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.
    • Service Drop Cable



  • Product Details

Application
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.


Applicable Standard

ASTM B 230

ASTM B 231

ASTM B 232

ASTM B 233

ICEA S-66-524 (NEMA WC7)


Construction
Concentric strand or compressed 1350-H19 conductor, polyethylene or cross-linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.


Technical Data

Code
Name
Conductor
Assembly
Phase Conductor (AAC)Messenger (ACSR)Approx
Cable
Weight
D.C. Resistance
at 20°C
SizeStranding
& Wire
Dia
Insulation
Thickness
SizeStranding & Wire Dia
AluminumSteelPhaseMessenger
AWGno./mmmis/mmAWGno./mmno./mmkg/kmohm/kmohm/km
D-11DUPLEX67/1.5645/1.14366/1.681/1.681142.1692.157
D-12DUPLEX37/2.245/1.14336/2.381/2.382121.0761.074
D-14QUADRUPLEX37/2.245/1.14336/2.381/2.384201.0761.074
D-15QUADRUPLEX1/07/3.1260/1.5241/06/3.371/3.378350.53720.535
D-20QUADRUPLEX47/1.9645/1.14346/2.121/2.123401.36201.3560
D-24QUADRUPLEX4/07/4.4260/1.5244/06/4.771/4.7715800.26880.2676
D-25QUADRUPLEX67/1.5645/1.14366/1.681/1.682302.16902.1570
