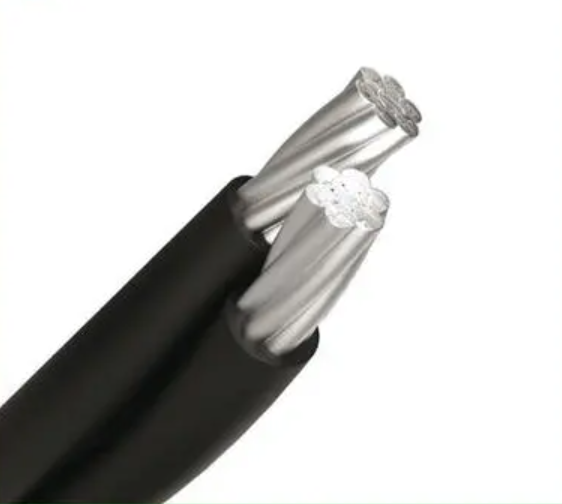

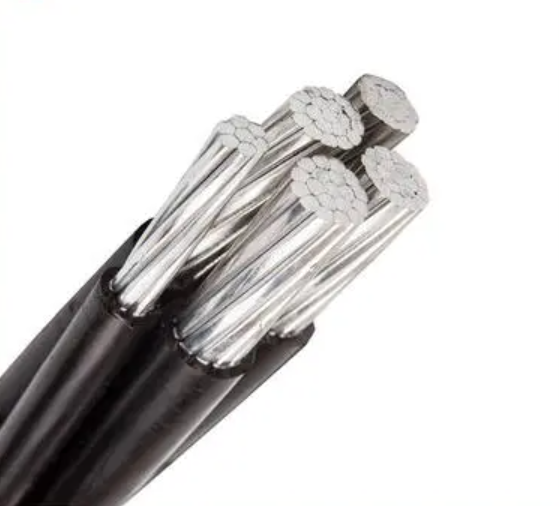

ABC Cable BT aerien presaaembles en Aluminium 3X50 1X54.6 1X16mm2 0.6/1kV 400V Manufacturer

Application
Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight.

Applicable Standard
NF C 33-209

Dimension Characteristics

Structure	Phase Core			Neutral Core			Public Lighting Core
	Section	Insulation Thickness	Electrical Resistance	Section	Insulation Thickness	Electrical Resistance	Section	Insulation Thickness	Electrical Resistance
	Section	Insulation Thickness	DC.20ºC	Section	Insulation Thickness	DC.20ºC	Section	Insulation Thickness	DC.20ºC
No.x mm²	No.x mm²	mm	Ω/km	No.x mm²	mm	Ω/km	No.x mm²	mm	Ω/km
2x16	2x16	1.2	1.91	-	-	-	-	-	-
2x25	2x25	1.4	1.20	-	-	-	-	-	-
2x35	2x35	1.6	0.868	-	-	-	-	-	-
2x50	2x50	1.6	0.641	-	-	-	-	-	-
4x16	4x16	1.2	1.91	-	-	-	-	-	-
4x25	4x25	1.4	1.20	-	-	-	-	-	-
4x35	4x35	1.6	0.868	-	-	-	-	-	-
3x25+54.6	3x25	1.4	1.20	54.6	1.6	0.63	-	-	-
3x25+54.6+Kx16	3x25	1.4	1.20	54.6	1.6	0.63	Kx16	1.2	1.91
3x35+54.6	3x35	1.6	0.868	54.6	1.6	0.63	-	-	-
3x35+54.6+Kx16	3x35	1.6	0.868	54.6	1.6	0.63	Kx16	1.2	1.91
3x50+54.6	3x50	1.6	0.641	54.6	1.6	0.63	-	-	-
3x50+54.6+Kx16	3x50	1.6	0.641	54.6	1.6	0.63	Kx16	1.2	1.91
3x50+54.6+Kx25	3x50	1.6	0.641	54.6	1.6	0.63	Kx25	1.4	1.20
3x70+54.6	3x70	1.8	0.443	54.6	1.5	0.63	-	-	-
3x70+54.6+Kx16	3x70	1.8	0.443	54.6	1.5	0.63	Kx16	1.2	1.91
3x70+54.6+Kx25	3x70	1.8	0.443	54.6	1.5	0.63	Kx25	1.4	1.20
3x95+54.6	3x95	1.8	0.320	54.6	1.6	0.63	-	-	-
3x95+54.6+Kx16	3x95	1.8	0.320	54.6	1.6	0.63	Kx16	1.2	1.91
3x95+54.6+Kx25	3x95	1.8	0.320	54.6	1.6	0.63	Kx25	1.4	1.20
3x95+70	3x95	1.8	0.320	70	1.5	0.50	-	-	-
3x95+70+Kx16	3x95	1.8	0.320	70	1.5	0.50	Kx16	1.2	1.91
3x95+70+Kx25	3x95	1.8	0.320	70	1.5	0.50	Kx25	1.4	1.20
3x120+70	3x120	1.8	0.253	70	1.5	0.50	-	-	-
3x120+70+Kx16	3x120	1.8	0.253	70	1.5	0.50	Kx16	1.2	1.91
3x120+70+Kx25	3x120	1.8	0.253	70	1.5	0.50	Kx25	1.4	1.20
3x120+95	3x120	1.8	0.253	95	1.6	0.343	-	-	-
3x120+95+Kx16	3x120	1.8	0.253	95	1.6	0.343	Kx16	1.2	1.91
3x120+95+Kx25	3x120	1.8	0.253	95	1.6	0.343	Kx25	1.4	1.20
3x150+70	3x150	1.7	0.206	70	1.5	0.50	-	-	-
3x150+70+Kx16	3x150	1.7	0.206	70	1.5	0.50	Kx16	1.2	1.91
3x150+70+Kx25	3x150	1.7	0.206	70	1.5	0.50	Kx25	1.4	1.20
