CHARACTERISTICS
Voltage Rating Uo/U (Um)
18/30 (36)kV
Test Voltage
63kV
Temperature Range
Fixed: -20°C to +90°C
Minimum Bending Radius
15 x overall diameter

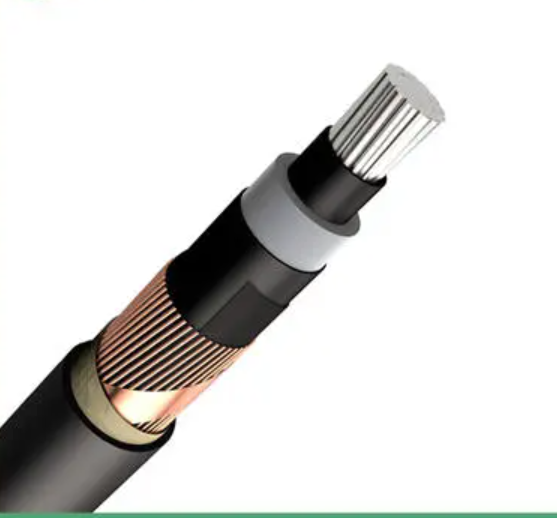

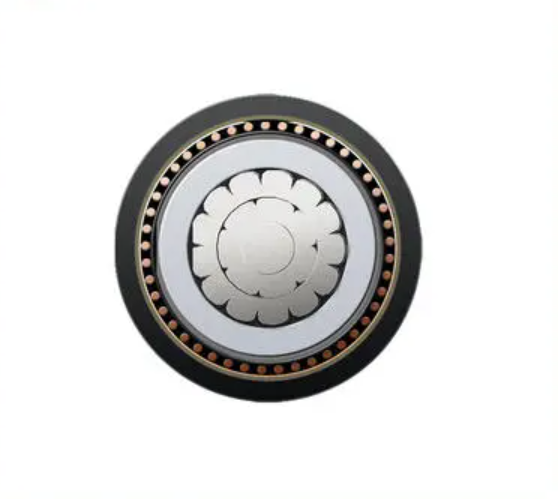

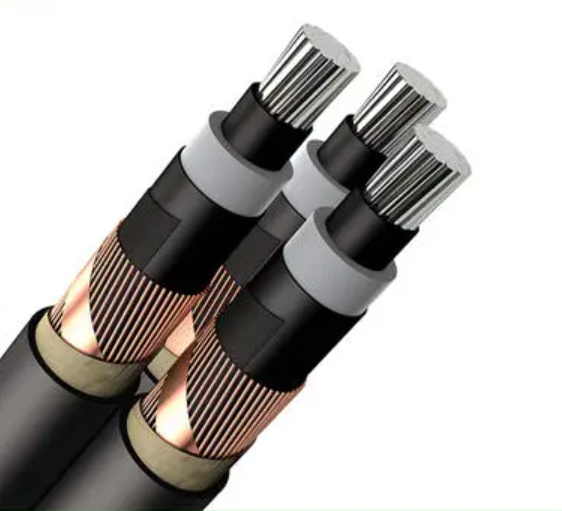

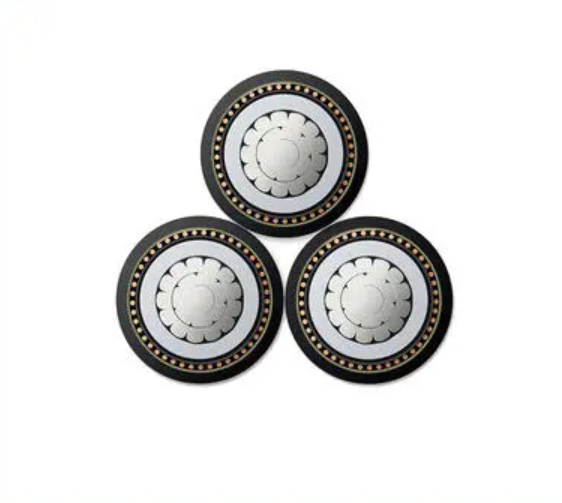

CONSTRUCTION
Conductor
Class 2 Aluminium, circular, stranded
Conductor Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen
Copper wire screen
Sheath
PVC (Polyvinyl Chloride)
Sheath Colour
Black
Applicable Standard
IEC 60228
IEC 60502-2
BS EN/IEC 60332-1-2
