11kV 3Cx300mm² CU/XLPE/PVC U/G Power Cable

    11kV 3Cx300mm² CU/XLPE/PVC U/G Power Cable

    They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.
    • CU/XLPE/CTS/PVC-6.35/11KV


  • Product Details
Application
Suitable for installations indoors: mostly in power supply stations and outdoors: in cable ducts, underground, and on cable trays for industries, switch-boards and power stations. Due to the good laying and mechanical characteristics, this cable is suitable when mechanical protection is required or in applications where mechanical damages are expected to occur.

Applicable Standard
It is designed and tested to meet or exceed the requirements of IEC 60502-2 standard and/or BS 6622 standard with rated voltage 6.35/11(12) kV.

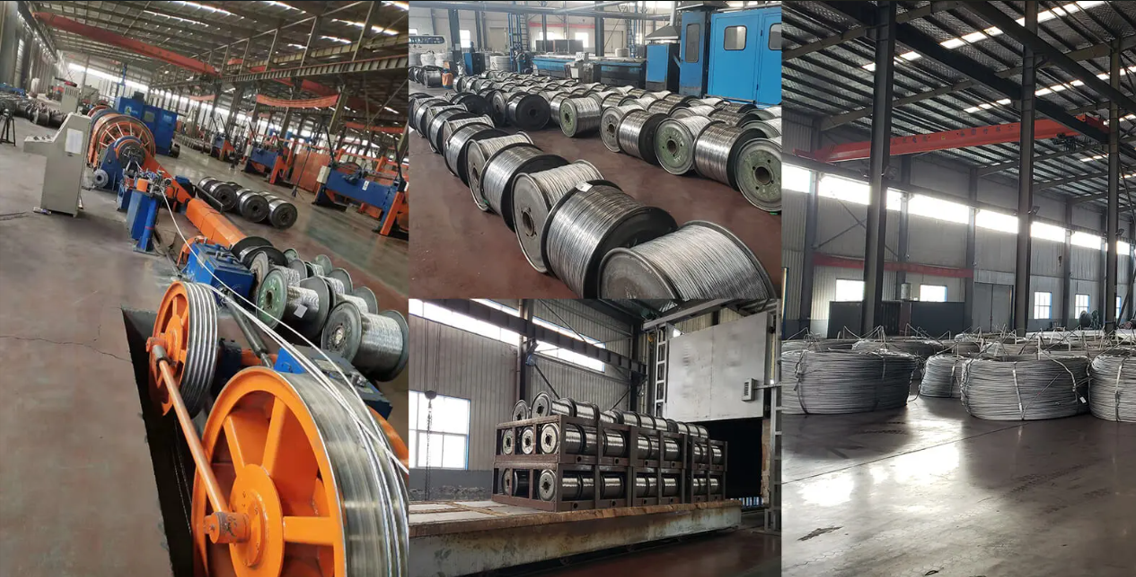

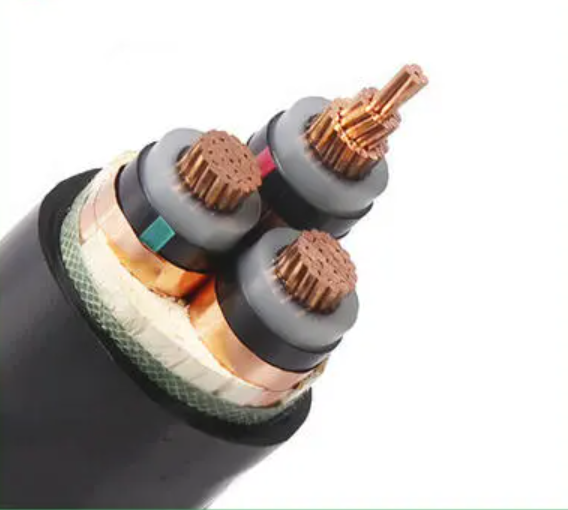

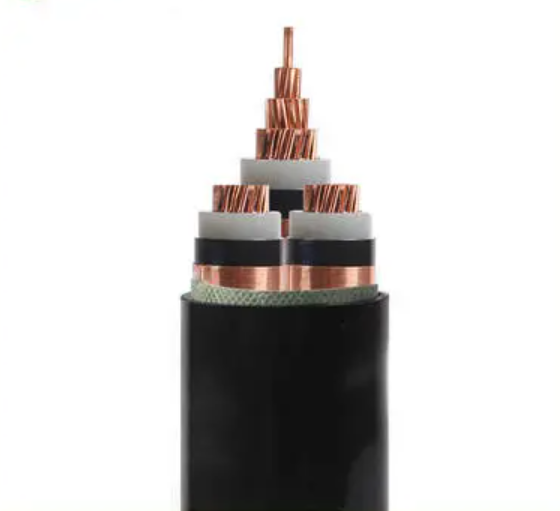

Cable Construction

Conductor

Plain annealed stranded circular compacted copper conductor (Class 2)

Conductor Screen
Extruded layer of a cross-linkable semi-conducting compound as a stress control layer

Insulation
Extruded layer of cross-linked polyethylene (XLPE).

Insulation Screen
Extruded layer of a cross-linkable semi-conducting compound firmly bonded to the insulation.

Metallic Screen
Flat plain copper tape helically applied over the insulation screen with suitable overlap.
Note: Copper wire screen is optional.

Filler

Non-hygroscopic polypropylene filler suitable for the operating temperature of the cable


Binder
Non-Woven Tape


Outer Sheath

Extruded layer of Polyvinyl chloride (PVC).


Dimension Characteristics

SectionInsulation ThicknessSheath ThicknessOverall DiameterCable WeightDC. Electrical   Resistance at 20°C
No.xmm2mmmmmmCuAlCuAl
kg/kmΩ/km
6/10(12)kV,   6.35/11(12)kV
1x253.41.619.86094580.7271.20
1x353.41.620.87295140.5240.868
1x503.41.722.38765850.3870.641
1x703.41.723.810926810.2680.443
1x953.41.825.713808050.1930.320
1x1203.41.827.116519130.1530.253
1x1503.41.928.7197010430.1240.206
1x1853.41.930.4227111650.09910.164
1x2403.42.032.9283013820.07540.125
1x3003.42.135.3350216420.06010.100
1x4003.42.238.5440619910.04700.0778
1x5003.42.342.0551524180.03660.0605
1x6303.42.445.6675428830.02830.0469
3x253.42.239.8192714510.7271.20
3x353.42.342.2231616390.5240.868
3x503.42.445.2280518740.3870.641
3x703.42.548.6349721930.2680.443
3x953.42.752.7448326530.1930.320
3x1203.42.855.9534030400.1530.253
3x1503.42.959.6639835030.1240.206
3x1853.43.063.0724139460.09910.164
3x2403.43.268.3923447290.07540.125
3x3003.43.373.31133755860.06010.100
3x4003.43.680.31417468220.04700.0778
3x5003.43.887.91732082990.03660.0605
3x6303.44.195.82173699490.02830.0469
