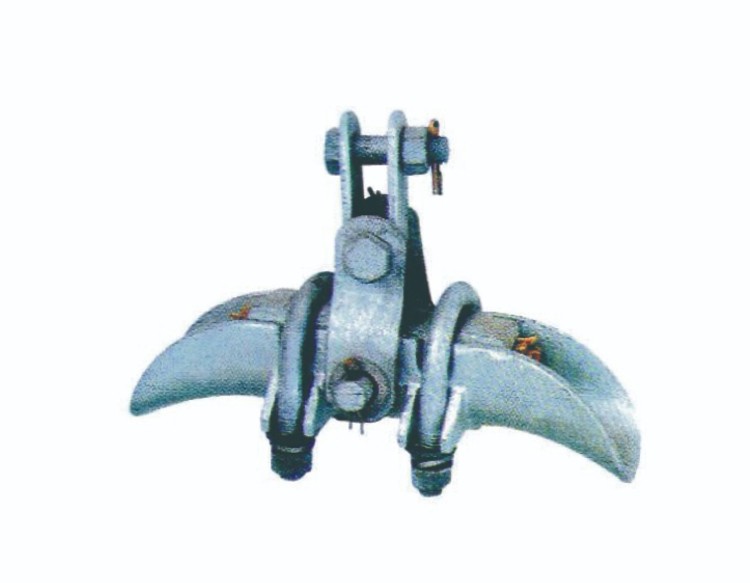

Suspension Clamp-XGU-BF

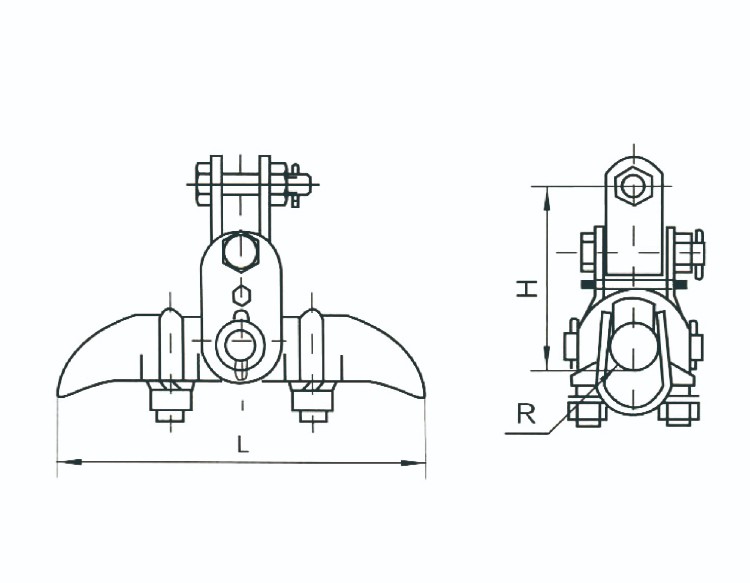

Catalog No. | Diameter | Dimensions (mm) | Failure Load (kN) | Weight (kg) | ||
L | R | H | ||||
XGU-5BF | 23~33 | 300 | 17 | 190 | 60 | 5.4 |
XGU-6BF | 34~45 | 300 | 23 | 205 | 60 | 5.8 |
XGU-7BF | 45~48.7 | 300 | 26 | 310 | 60 | 6.4 |
The body and keeper are made of cast iron. The pins are made of stainless steel
Other parts are steel material. All parts are treated by hot-dip galvanized processes.
