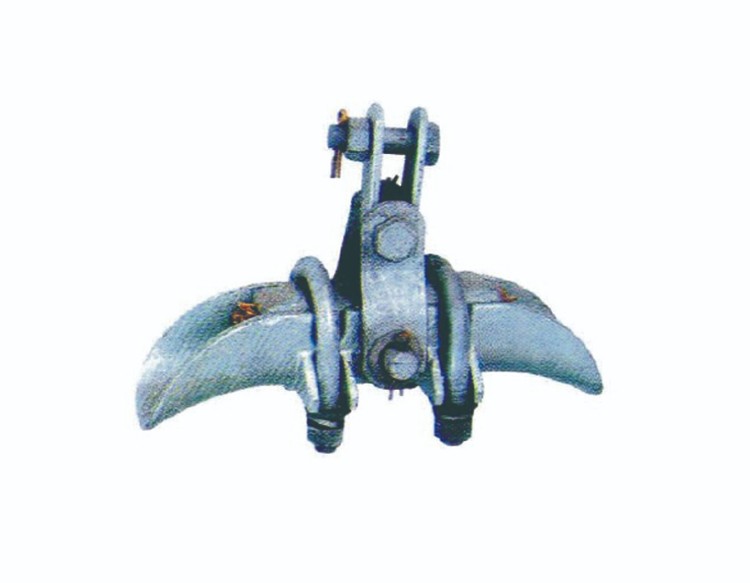

Suspension Clamps-XGU(With U Type Clevis)

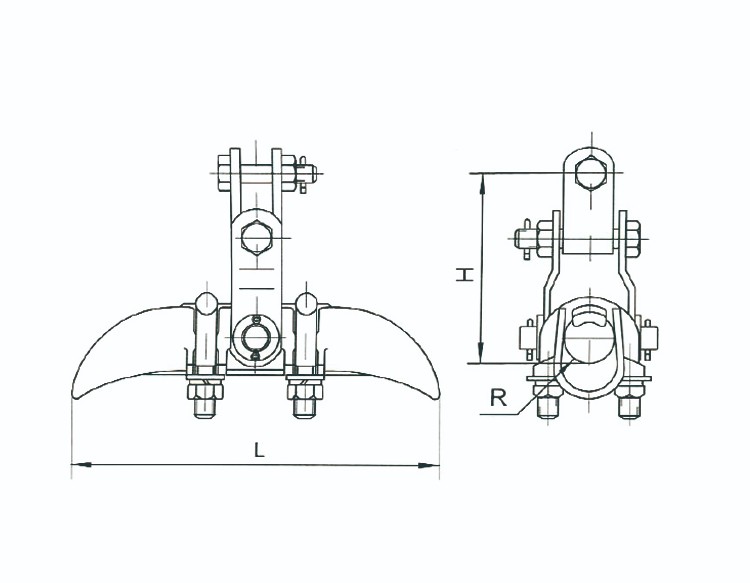

Catalog No. | Diameter | Dimensions (mm) | Failure Load (kN) | Weight (kg) | ||
L | R | H | ||||
XGU-5B | 23~33 | 300 | 17 | 157 | 70 | 5.4 |
XGU-6B | 34~45 | 300 | 23 | 143 | 70 | 5.8 |
XGU-7(B) | 45~48.7 | 300 | 26 | 156 | 70 | 6.2 |
The body and keeper are made of cast iron. The pins are made of stainless steel
Other parts are steel material. All parts are treated by hot-dip galvanized processes.
