Custom Pre-assembled Aluminum Overhead Cable 3X95 1X50mm2 0.6/1kV

Pre-assembled Aluminum Overhead Cable 3X95+1X50mm2 0.6/1kV

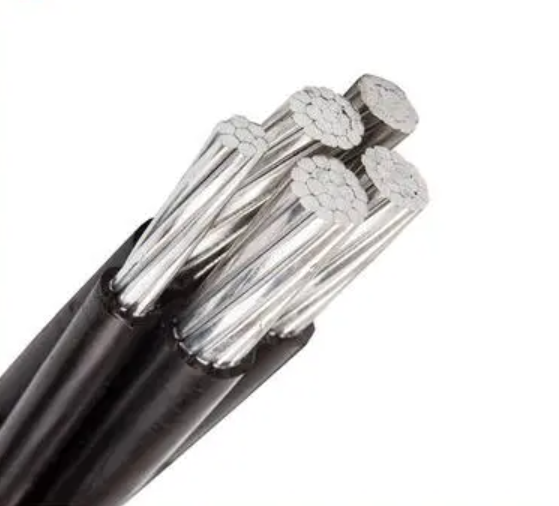

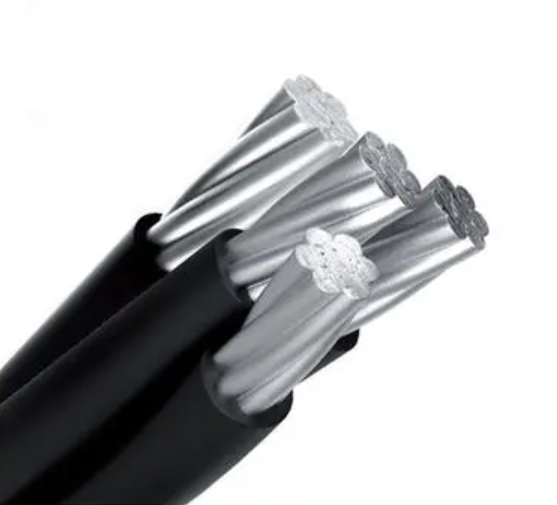

The Pre-assembled Conductors are made up of one or more pure aluminum conductors, whose function is to transport the electric current. and a neutral conductor or aluminum messenger cable that also assumes the mechanical function. All covered by a layer of cross-linked polyethylene (XLPE).

Model:ABC Cable-0.6/1KV

Construction

Applicable Standard

ASTM B231

ASTM B398

ASTM B399

ANSI/ICEA S-76-474

IEC 60228

Construction Characteristics
Conductor Material: Aluminimum
Insulation Material: Cross-linked Polyethylene (XLPE)

Dimenison Characteristics

Section (mm2)	Mass (kg/km)	Resistance (Ohm/km) 20°C	N ° THREADS	RESISTANCE RUPTURE (kN)	INTENSITY TO T ° WITH. 20 ° C (A)	DIAMETER APP OF CONDUCTOR (mm)

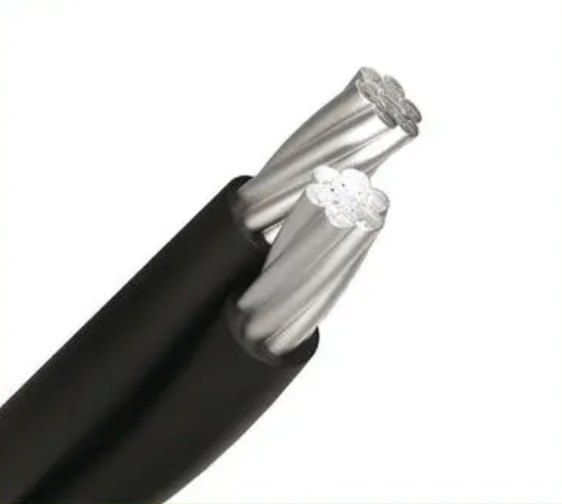

1x16+1x16mm2	140	1.91	7	5.07	85	15.1
1x25+1x25mm2	211	1.166	7	8.0	112	17.6
2x25+1x25mm2	314	1.166	7	8.0	112	18.4
3x25+1x50mm2	730	1.166	7	15.8	102	20.6
3x35+1x50mm2	845	0.829	7	15.8	127	25.7
3x50+1x50mm2	920	0.583	7	15.8	153	28.8
3x70+1x50mm2	1190	0.415	19	15.8	197	32.8
3x95+1x50mm2	1460	0.320	19	15.8	238	36.9
